Rock Drill Bits

Blast Furnace Tapping Hole Tools

Rock Drill Bits

Below SG Rock Drill tools are available and applicable for drilling different kinds of rock formations.
Thread button bit、retrac button bit、thread cross bit、shank adaptors、coupling sleeve、drifter drill rod、extension drill rod、MF drill rod、speed drill rod、tapered button bit、tapered cross bit、tapered chisel bit、tapered drill rod、integral drill rod、R25/R28/R32 drifting&tunneling、R32/T38/T45/T51/T60/ST58/ST68 bench drilling、coal mining tools、tunneling tools、surfacing mining tools、trenching tools、foundation drilling tools、road planning bits、grader blades、DTH bits、DTH hammer、DTH drill pipes、self-drilling anchor bolt、Furnace tapping hole bits、furnace tapping hole rods、tricone bit-for mining、tricone bit-for oil&water、roller cutter、TBM cutter

Top Hammer Drilling Tools

: Thread Button Bit
1)thread:R22,R25,R28,R32,R35,R38,T38,T45,T51,ST58,T60
2)diameter:42-127mm

: Retrac Button Bit
1)thread:R22,R25,R28,R32,R35,R38,T38,T45,T51,ST58,T60
2)diameter:42-127mm

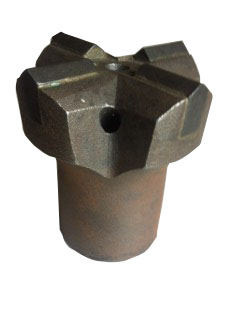

: Thread cross bit
1)thread:R22,R25,R28,R32
2)diameter:33-64mm

: Shank adaptors
1)thread:R28,R32,R38,R45,T45,T51,ST58,ST68,HL64

: coupling sleeve
1)thread:R25,R28,R32,R38,T38,T45,T51
2)ingersoll-Rand,BBE and montabert series rock drill
3)length:150-250mm

: drifter drill rod
1)thread:R22,R25,R28,R32,R38,T38,T45,T51
2)rod size:hex 22mm,25mm,28mm,32mm,35mm
3)length:0.4-6m
4)diameter:39-52mm

: Extension drill rod
1)thread:R22,R25,R28,R32,R38,T38,T45,T51
2)rod size:hex 22mm,25mm,28mm,32mm,35mm,
3)length:0.4-6m
4)diameter:39-52mm

: Speed drill rod
1)thread:R22,R25,R28,R32,R38,T38,T45,T51
2)rod size:hex 22mm,25mm,28mm,32mm,35mm
3)length:0.4-6m
4)diameter:39-52mm

: MF drill rod
1)thread:R22,R25,R28,R32,R38,T38,T45,T51
2)rod size:hex 22mm,25mm,28mm,32mm,35mm
3)length:0.4-6m
4)dia:39-52mm

: Tapered button bit
1)taper:6˚,7˚,11˚,12˚
2)dia:32-43mm

: Tapered cross bit
1)taper:7˚,11˚,12˚ etc
2)type:chisel bit,cross bit,button bit
3)dia:20-65mm

: Tapered chisel bit
1)taper:7˚,11˚,12˚ etc
2)type:chisel bit,cross bit,button bit
3)dia:20-65mm

: Tapered drill rod
1)steel grade:55SiMnMo,40SiMnCrNiMo,95CrMo equivalent to SANDBAR 20 or C253
2)shank size:Hex 22×108,22×159,22×80,25×108
3)taper:6˚,7˚,11˚,12˚ etc
4)length:0.5-9m

: Integral drill rod
1)steel grade:55SiMnMo,40SiMnCrNiMo,95CrMo equivalent to SANDBAR 20 or C253
2)shank size:Hex 22×108,22×159,22×80,25×108
3)head diameter:25-43mm
4)length:0.5-9m

Drifting & tunneling

: R25 drifting&tunneling
1)thread:R25
2)type:bits,drill rods and coupling
3)bit diameter:33-89mm
4)drill rod length:610-3600mm

: R28 drilling tools
1)thread:R28
2)type:bits,drill rods and coupling
3)bit diameter:37-89mm
4)drill rode length:2400-4310

: R32 drilling tools
1)thread:R32
2)type:bits,drill rods and coupling
3)bit diameter:41-127mm
4)drill rod length:2400-6400mm

Bench Drilling

: R32 bench drilling
1)thread:R32
2)type:bits,drill rods and coupling
3)bit diameter:48-127mm
4)drill rod length:915-3660mm

: R38 bench drilling
1)thread:T38
2)type:bits,drill rods and coupling
3)bit diameter:64-127mm
4)drill rod length:915-6095mm

: T45 bench drilling
1)thread:T45
2)type:bits,drill rods and coupling
3)bit diameter:70-152mm
4)drill rod length:1220-6095mm

: T51 bench drilling
1)thread:T51
2)type:bits,drill rods and coupling
3)bit diameter:89-152mm
4)drill rod length;1830-6095mm

: T60 bench drilling
1)thread:T60
2)type:bits,drill rods
3)bit diameter:92-152mm
4)drill rod length:1660-6095mm

: ST68 bench drilling
1)Thread:ST68
2)type:drill bit,drill rod
3)bit diameter:102-140mm
4)drill rod length:1525-6110mm

: ST58 bench drilling
1)thread:ST58
2)type:drill bit,drill rod
3)bit diameter:89-115mm
4)drill rod length:1525-3660mm

Mining Tools

: Coal mining tools
1)step shank:43mm/35mm
2)shank:35mm,30mm,25mm
3)carbide tips:plug tips,narrow-bottom

: Tunneling tools
1)step shank:38mm/30mm
2)shank size:38mm,34mm
3)carbide tips:plug tips,narrow-bottom

: Surface mining tools
1.step shank:38/30
2.shank:42mm
3.carbide tips:plug tips,narrow-bottom

: Trenching tools
1)step shank:38mm/30mm
2)shank:25mm,22mm,20mm,19mm,11mm
3)carbide tips:plug tips,narrow-bottom,flat-botton

: Foundation drilling tools
1)step shank:38/30mm
2)carbide tips:plug tips,narrow-bottom

Grader blades

1)shank:22mm

2)carbide tips:flat-bottom

: Road planning bits
1)shank:20mm
2)carbide tips:flat-bottom

DTH Drilling Tools

: DTH bits
1)dia:85-555mm
2)DTH hammer:3˚-12˚
3)splines:4-10

: DTH hammer
1)high pressure DTH hammer3.5 hammer to 12"happer,such as DHD,SD,Cop,QL and etc
2)low pressure DTH hammer BR1,BR2,J60,J80,J100,J150 etc
3)DTH bits suits for above DTH hammer and SD123 shank DTH hammer is aviliable.The biggest size is 330mm for SD12

Blast Furnace Tapping Hole Tools

: Furnace tapping hole bits
1)cross bit diameter:45-100mm
2)buton bit diameter:48-57mm

: Furnace tapping hole rods
1)thread:R38-R32,T38
2)length:2800-4300

Rock Bolting

: Self-drilling anchor bolt
1)dia:R25N,R32L,R32N,R32S,R32N,R51L,R51N,T76N,T76S
2)steel grade:Acc,To EN10083-1
3)tensile load:200-1900KN
4)standard length:1M,2M,3M,4M,6M

: Self-drilling anchor bolt accessories
1)bit:cross bit,button bit,arching bit,asymmetrical bit,arching button bbit(steel,sintered carbide)
2)coupling:R22,R25,R28,R32,R38,T38,T45,T51
3)nut:spherical nut and nut
4)anchor plate:150×150×8,200×200×10,200×200×12,250×250×40,250×250×60
5)shank rod:hex,22×108×R22,25×108×R25

Tricone Bits Pilot Bit

: Tricone bit-for mining
1)thread:6 5/8" API,4 1/2" API,3 1/2" API
2)diameter"10 5/8",9",6 3/4",9 7/8",12 1/4"
3)weight:74kg,65kg,50kg,21kg,98kg,76kg,126kg

: Tricone bit-for oil&water
1)thread:6 5/8" API,4 1/2" API,3 1/2" API
2)diameter"10 5/8",9",6 3/4",9 7/8",12 1/4"
3)weight:74kg,65kg,50kg,21kg,98kg,76kg,126kg

Roller Cutter

: Roller cutter
1)6˚ roller cutter are generally used for drilling holes from 400mm to 800mm in diameter and allow a thtust load up to 70KN
2)8˚ roller cutter are generally used for drilling holes from 800mm to 1400mm in diameter and allow a thtust load up to 80KN
3)12˚ roller cutter are generally used for drilling holes from 1200mm to 3500mm in diameter and allow a thtusst load up to 140KN

TBM Cutter

: TBM cutter

TBM cutter are suitable for Komatsu,Milsubishi,Herrenknecht,Wirth,Robbins machines,we can supply according to your request.
They are widely used in foundation drilling,rotary drilling,trenching,tunneling etc.

Shear Wrench

Shear Wrench for Tension Control Bolt SG Shear Wrench is specifically designed to be used with Tension Control (TC) Bolts. It has an outer socket that turns the nut counterclockwise, while grabbing the spline of the bolt with the inner socket ...
